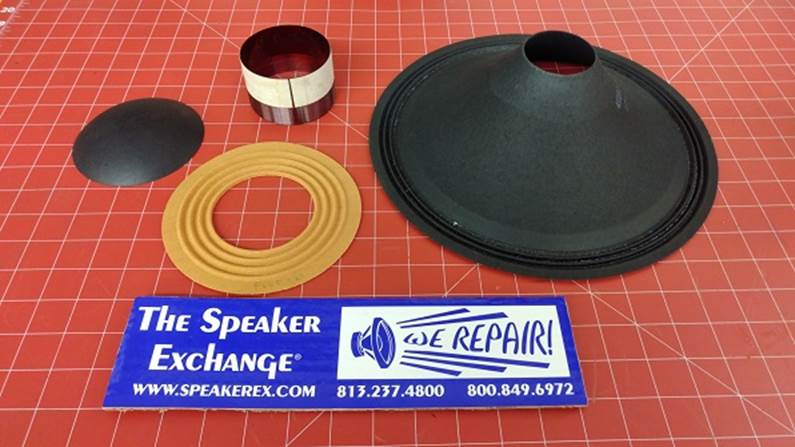

EAW LC12/3002-8 12″ Aftermarket Recone Kit


Product Description

Brand New EAW LC12/3002-8 12″ Aftermarket Recone Kit 8 ohm. Parts specifications:

  • Cone: 12″ outside diameter, 3.250″ deep, 2.871″ voice coil opening, cloth accordion edge, (the voice coil opening will need to be opened to 3″)
  • Voice Coil: Kapton with 2.988″ inside diameter, 2.0″  form length, .750″ windings width, 8 ohm
  • Flat Spider: with 3″ VC opening, 6″ outside diameter
  • Dustcap: 4.125″ outside diameter, paper dome with lip up
  • Gasket: re-use original
  • Pigtails, shims and instructions are included.

You will also need glue, epoxy and latex which are sold separately.

Questions about how to repair? See Reconing Video and Reconing FAQ’s

Recone kit parts are subject to availability. We try to keep most parts in stock, but some parts will require 6-10 day lead time. Specific parts and specs are subject to change but replacement parts will be matched as closely as possible.

Additional Information

Weight 2 lbs
Dimensions 12 x 12 x 3 in
SKU: LC12/3002-8AM Brands: , .
