Altec 604C Duplex 15″ Aftermarket Recone Kit

$80.00

Product Description

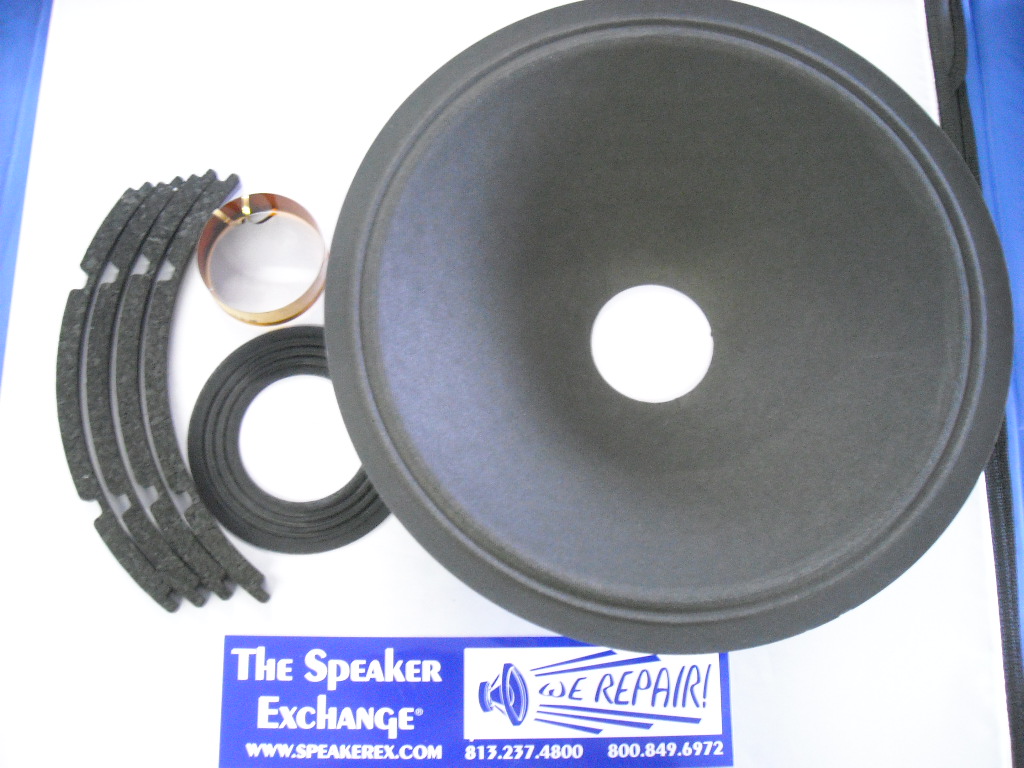

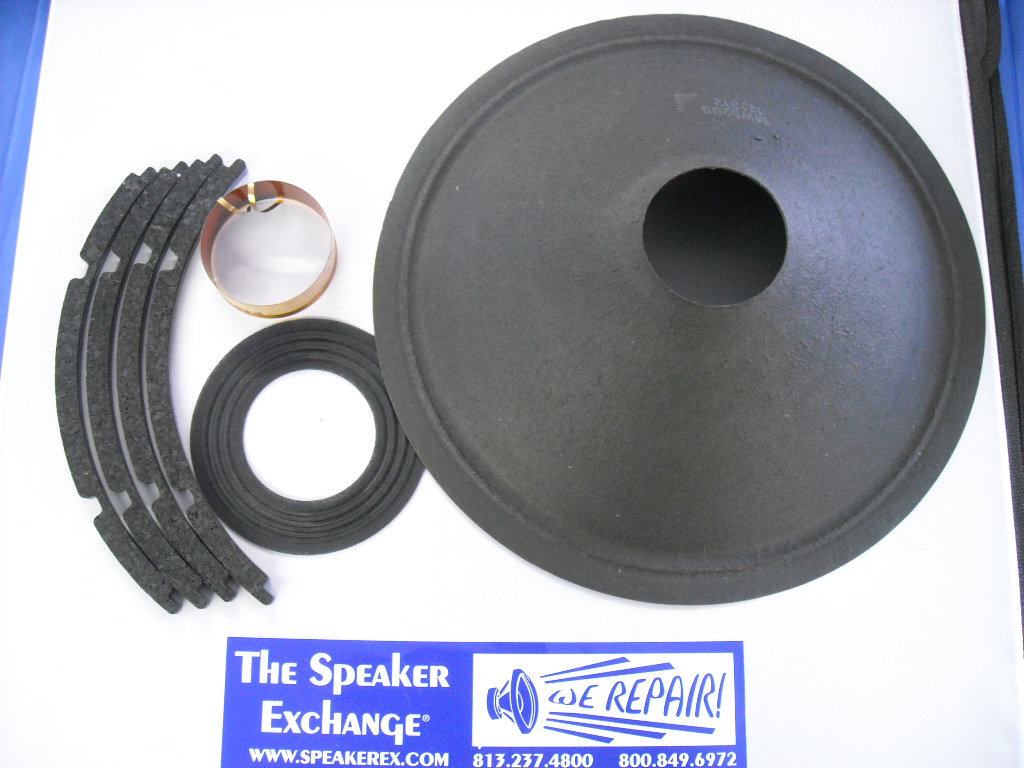

Brand New Altec 604C 15″ Duplex Aftermarket Recone Kit 16 ohm. Parts specifications:

  • Cone: 15″ outside diameter, 3.625″ deep, 3″ voice coil opening, all paper edge with one roll
  • Voice Coil: 3″ inside diameter, 1.125″  form length, .290″ windings width, 16 ohm
  • Flat Spider: 5.509″ outside diameter, 3″ VC opening
  • Gasket: 15″ rubitex gasket, 4 segments
  • Pigtails, shims and instructions are included.
  • You will need to reuse original felt around high frequency horn

You will also need glue, epoxy and latex which are sold separately.

Questions about how to repair? See Reconing Video and Reconing FAQ’s

Recone kit parts are subject to availability. We try to keep most parts in stock, but some parts will require 6-10 day lead time. Specific parts and specs are subject to change but replacement parts will be matched as closely as possible

Additional Information

Weight 2.6 lbs
Dimensions 15 x 15 x 3 in
