Description

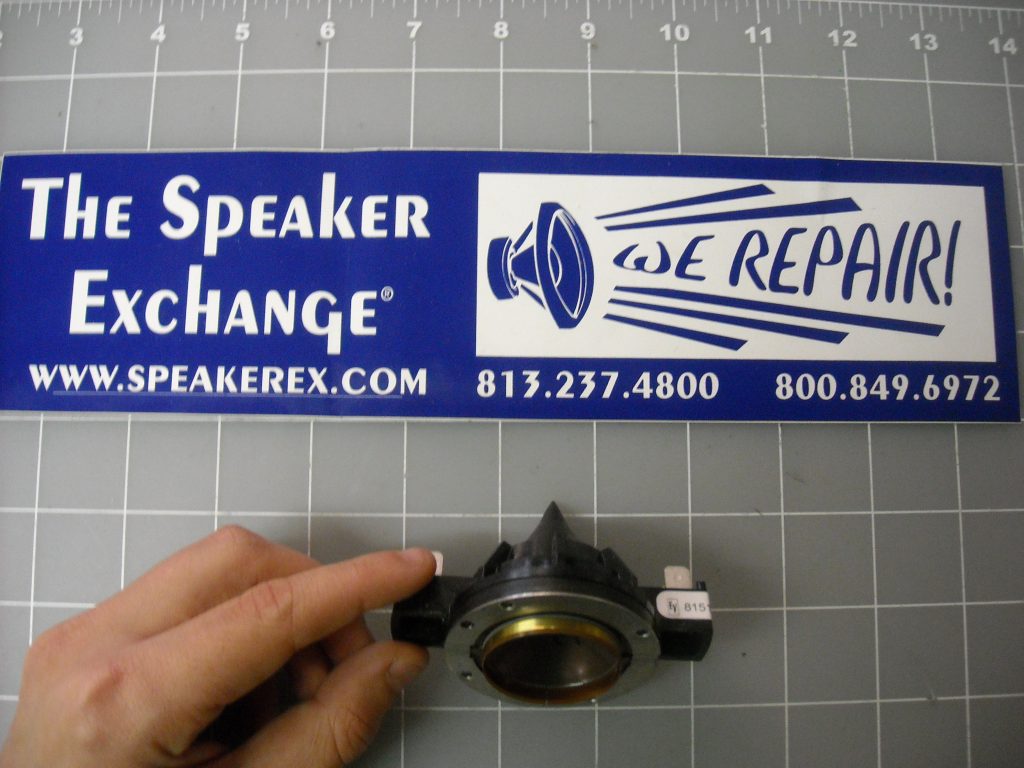

Brand New Genuine Electro-Voice 81514XX / 89858XX Diaphragm F.01U.280.471. Diaphragm has slide terminals. Used in Driver models: EV DH2005, DH-2005, DH2010A, DH-2010A, DH3, DH-3, DH3B, DH3-B, DH3-4MT, DH1202, DH2001 drivers.

Used in EV cabinet models: ETX-12P, ETX12P, ETX-15P, ETX15P, EVI12, EVI15, EVI28, FM1202ER, FM1202, FM1502ER, Force series, FR15-2, Gladiator G115, High-Q & QE, i25, i-25S12, S12-E, S15 & S15E & M, S15M-E, S-122, S-152, S-1202ER, S-1503ER, S-1803ER, SA152, SH1502, SH1512, SH1512ER, SL8.2 Cinema, SL12-12H, SL12-12V, SL15-2H, SX80, SX80WP, SX80PIX, SX80TW, SX100, SX100+W & +E, SX200, SX200W-P, SX250, SX250-UN, SX250-BLK, SX250-WH, SX300, SX300A & E, SX300WE, SX300P, SX300WP, SX300PI, SX300PIX, SX300PI-W, SX300PIX-W, SX325, SX500, SX500A, SX500PI, SX500W, SXA100, SXA250, TX1122, TX1152, T15i, T22, T52, T53, T55, T351, XI-1082, ZX1-90, ZX1i-90, ZX1i-100, ZXA1-90, ZXA1, ZX1, ZX4+ other models. Also may be used with Bag End E500 and TA15. This is also the OEM diaphragm for the Turbosound CD103 Driver (RD103).

Specs:

• Voice coil: 1.25″ (32mm)
• Diameter: 2″ (50mm)
• Length: 3″ (150mm)
• Impedance: 8 ohm, DCR: (+/-) 5 ohm
• Titanium dome with edge wound voice coil on Kapton former

The positive side has two little black notches next to the metal terminal and is usually marked with a silver or red marker.
