Eminence N320T-8 HF Compression Driver

Eminence N320T-8 HF Compression Driver - Image 2

Eminence N320T-8 HF Compression Driver

$252.99

🚚 This Item Ships FREE*

Guaranteed Safe Checkout

SKU: N320T-8 Categories Compression Drivers, Klipsch Tweeters, Replacement Tweeters For Speakers, Compression Drivers, Horns Tags EMINENCE N320T-8, N320T-8, Neodymium Brand: Eminence

Description
Reviews (0)

Description

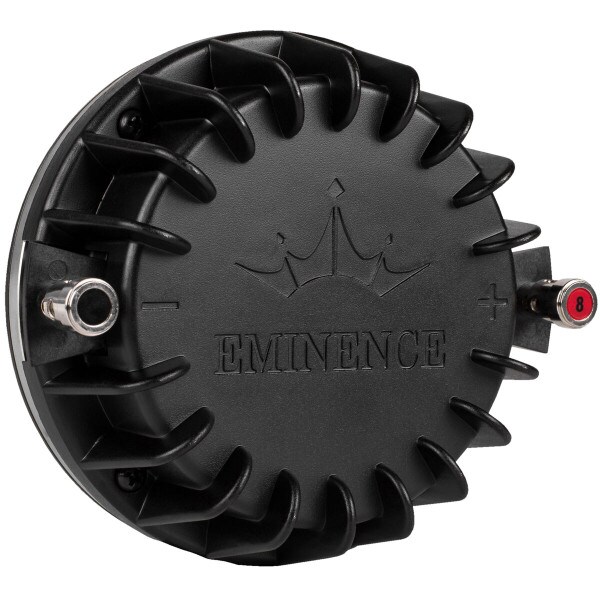

The 2″ exit N320T-8 sets a new standard in compression drivers from Eminence. Featuring D3 technology (Damped Diametric Drive) to deliver linear response while allowing a smooth crossover point.
Powerful neodymium magnet keeps weight and size to a minimum
Copper shorting ring lowers distortion and voice coil inductance
Cooling fins and 3″ voice coil ensure high power handling for extended periods
550 Hz resonance frequency allows crossover points as low as 800 Hz

SPECIFICATION
Throat Size	2″, 50.8mm
Nominal Impedance*	8Ω
Minimum Impedance	6.7 ohm @ 3.6 kHz
Power Rating**	100 W (AES)
Resonance	0.52kHz
Usable Frequency Range	800Hz-20kHz
Recommended Crossover	800 Hz / 12 dBkHz
Sensitivity***	110.4
Magnet Material	Neodymium
Magnet Weight	11oz, 0.31kg
Voice Coil Diameter	3″ / 76.2mm
Voice Coil Former	Polyimide
Diaphragm Material	Titanium
DC Resistance (Re)	4.8Ω
MOUNTING INFORMATION
Overall Diameter	5.72″, 145.3mm
Driver Volume Displaced	0.02 cu.ft., 0.8 liters
Depth	3.1″, 78.7mm
Weight	5 lbs, 2.3 kg
Mounting Thread	N/A
Mounting Holes Diameter	4X 1/4-20
Mounting Holes B.C.D.	4 in. 101.6 mm
