$269.99

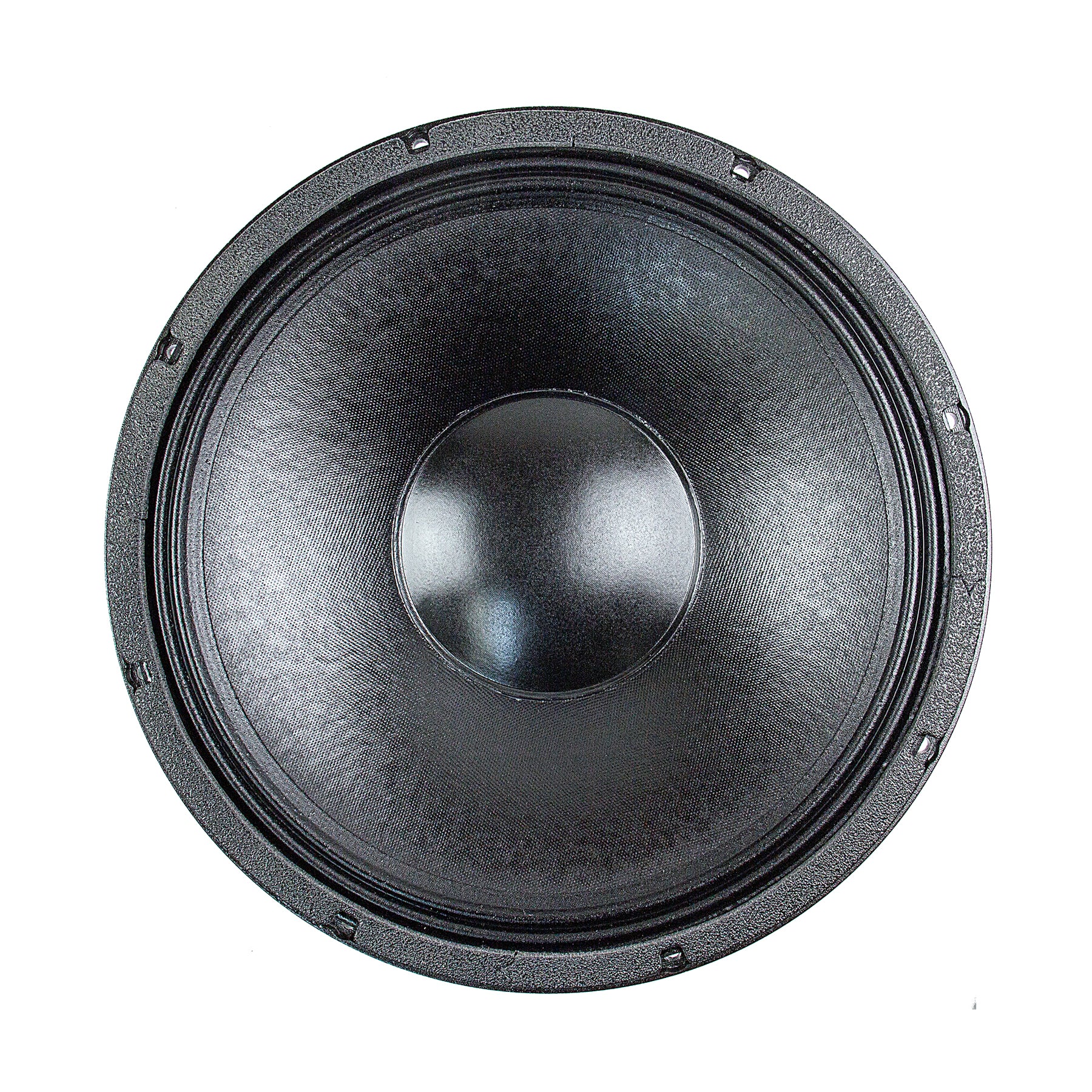

Brand New Genuine Eminence OMEGA PRO-15-2KW-8 15″ Professional Series Speaker.
| SPECIFICATION | |
| Nominal Basket Diameter | 15″, 381 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | 2000 W |
| Watts | 1000 W |
| Resonance | 39.67 Hz |
| Usable Frequency Range | 39 Hz – 1.245 kHz |
| Sensitivity* | 94.9 dB |
| Magnet Weight | 109 oz. |
| Gap Height | 0.375″, 9.5 mm |
| Voice Coil Diameter | 4″, 101.6 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 39.67 Hz |
| DC Resistance (Re) | 5.95 Ω |
| Coil Inductance (Le) | 1.13 m H |
| Mechanical Q (Qms) | 13.9 |
| Electromagnetic Q (Qes) | 0.46 |
| Total Q (Qts) | 0.44 |
| Compliance Equivalent Volume (Vas) | 142.51 liters / 5.03 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 634 cc |
| Mechanical Compliance of Suspension (Cms) | 0.14 mm/N |
| BL Product (BL) | 19.07 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 111.87 grams |
| Efficiency Bandwidth Product (EBP) | 86.96 |
| Maximum Linear Excursion (Xmax) | 7.4 mm |
| Surface Area of Cone (Sd) | 856.3 cm2 |
| Maximum Mechanical Limit (Xlim) | 13 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | N/a |
| Vented | 77.87-198.22 liters / 2.75-7 cu.ft. |
| Driver Volume Displaced | 263 cu.in. / 4.31 liters |
| Overall Diameter | 15.24″, 387.1 mm |
| Baffle Hole Diameter | 14″, 355.6 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.275″, 6.985mm |
| Mounting Holes B.C.D. | 14.56″, 369.8mm |
| Depth | 6.42″, 163 mm |
| Net Weight | 22 lbs, 9.98 kg |
| Shipping Weight | 26 lbs, 11.79 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Inside/outside Copper voice coil |
| Coil Former | Fiberglass former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented and extended core |
| Backplate Details | Vented |
| Basket Materials | Die-cast aluminum basket |
| Cone Composition | Water-resistant treated paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Water-resistant treated dust cap |
