Description

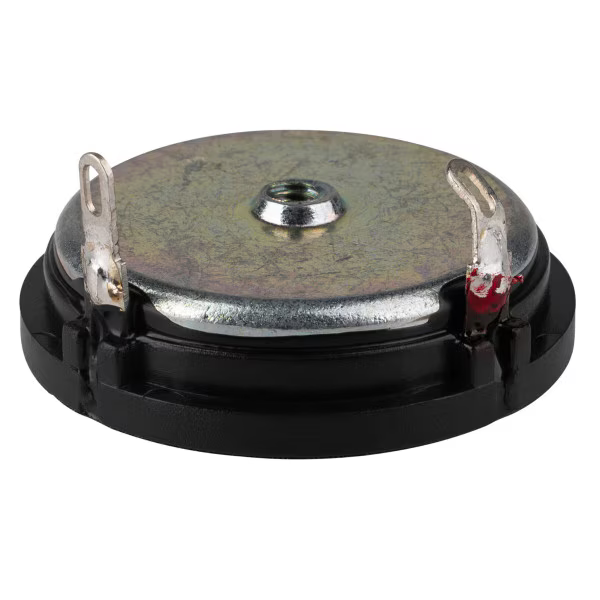

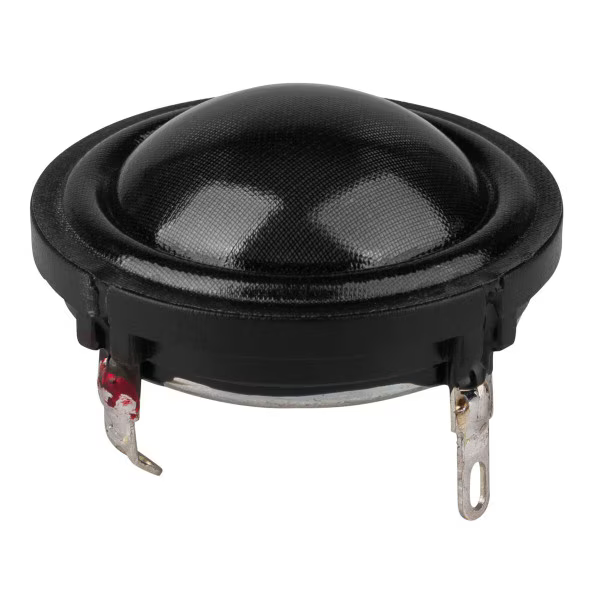

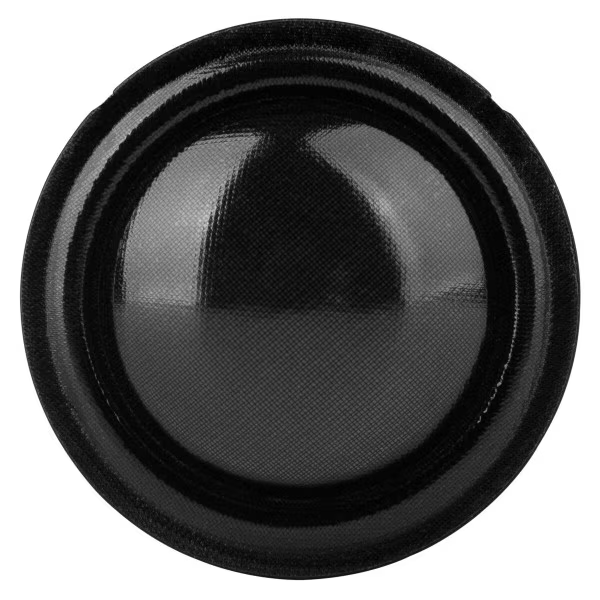

Eminence SD28 1″ Soft Dome Tweeter, 4 Ohm, 10W is an ultra-compact high-frequency speaker designed to deliver smooth, extended treble reproduction in space-constrained audio applications. The SD28 features a 4-ohm nominal impedance, 10W AES power rating, 20W EIA rating, 92.5 dB sensitivity, and a usable frequency range of 1.5 kHz to 20 kHz.

With an overall diameter of only 1.48 inches, the Eminence SD28 is well suited for home stereo, car audio, ATV, RV, compact speaker systems, and custom audio projects where a small-format tweeter is required. Its 1.5 kHz resonance and 1.5 kHz recommended low crossover frequency allow it to provide high-frequency coverage in a compact package.

Key Specifications

• Brand: Eminence
• Model: SD28
• Type: Soft Dome Tweeter
• Nominal Impedance: 4 Ω
• Power Rating: 10W AES
• EIA Power Rating: 20W
• Sensitivity: 92.5 dB
• Usable Frequency Range: 1,500 Hz–20 kHz
• Resonance: 1.5 kHz
• Recommended Low Crossover: 1.5 kHz
• Dispersion: 60°
• Overall Diameter: 1.48″ / 37.6 mm
• Height: 1″ / 25.4 mm
• Mounting: Rear mount
• Net Weight: 0.1 lb / 0.05 kg
• Application: Home stereo, car audio, ATV, RV, compact speaker systems

Product Features

• Compact 1″ soft-dome tweeter
• 4-ohm nominal impedance
• 10W AES power handling
• 20W EIA power rating
• 92.5 dB sensitivity
• Extended response up to 20 kHz
• Extremely compact 1.48″ overall diameter
• Rear-mount design
• Ideal for applications where installation space is limited
