Description

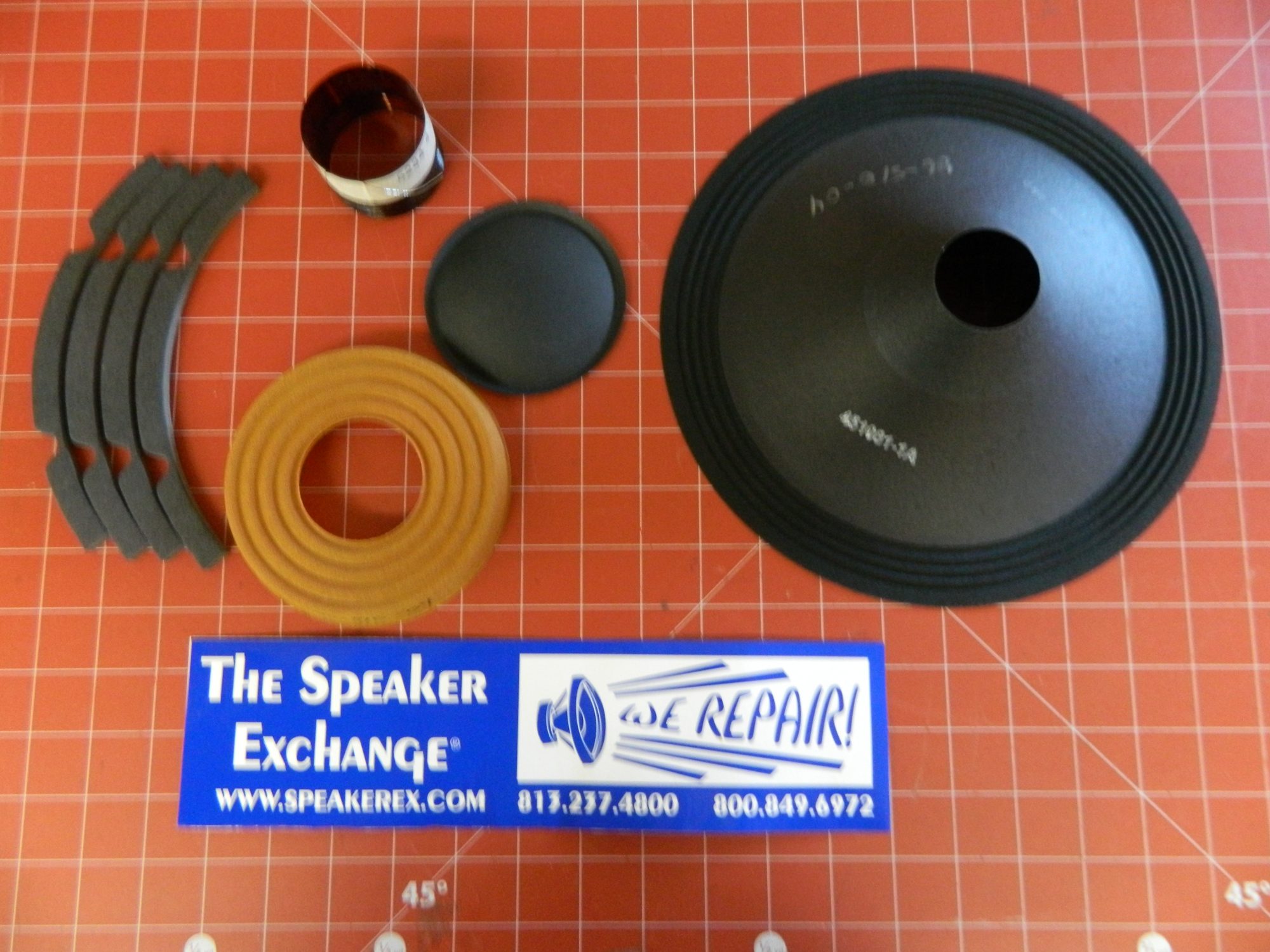

Brand New Ampeg/Eminence 86-510-04 10″ 4 Ohm Aftermarket Recone Kit. Parts specifications:

• Cone: 10″ outside diameter, 2.4″ deep, 1.5″ voice coil opening, smooth paper cone with accordion surround – you must enlarge the vc opening

• Voice Coil: 2.015″ inside diameter, 1.5″  form length, .625″ wind width, 4 ohms
• Cup Spider: 4.75″ outside diameter, 2.0″ VC opening, .500″ cup height
• Cup Spider: 4.748″ outside diameter, 2.0″ VC opening, .375″ cup height
• Dustcap: 3.5″ outside diameter paper dome
• Gasket: 10″ chip, 4 sector
• Pigtails, shims and instructions are included.

You will also need glue, epoxy and latex which are sold separately.

*Please dry fit the parts first and use the spider that fits the frame the best.*

Questions about how to repair? See Reconing Video and Reconing FAQ’s

Recone kit parts are subject to availability. We try to keep most parts in stock, but some parts will require 6-10 day lead time. Specific parts and specs are subject to change but replacement parts will be matched as closely as possible.
