JBL L100 Parts and Repair
15
Mar
Mar
The JBL L100 series speaker was the consumer version of the popular 4400 Series Studio Monitors. It remains one of the most popular speakers due to sturdy construction and high quality components which combined to produce great sound. It was so popular that a number of different versions made. Here are the parts details: new component and repair parts availability.
L100 Century: LE20-1 tweeter repaired with the D8RLE20 diaphragm, LE5-2 midrange (which is no longer available) and uses the C8RLE52 recone kit, and the 123A-1 woofer (which is no longer available) -C8R2212 accordion edge recone kit.
L100A Century: LE25 tweeter repaired with the D8RLE25 diaphragm, LE5-2 midrange which uses the C8RLE52 recone kit, and the 123A-1 woofer (which is no longer available) –C8R2212 accordion edge recone kit.
L100A Century (Late Model): LE25 tweeter repaired with the D8RLE25 diaphragm, LE5-2 midrange which uses the C8RLE52 recone kit, and the 123A-3 (which is no longer available) –C8R2213 recone kit with accordion edge.

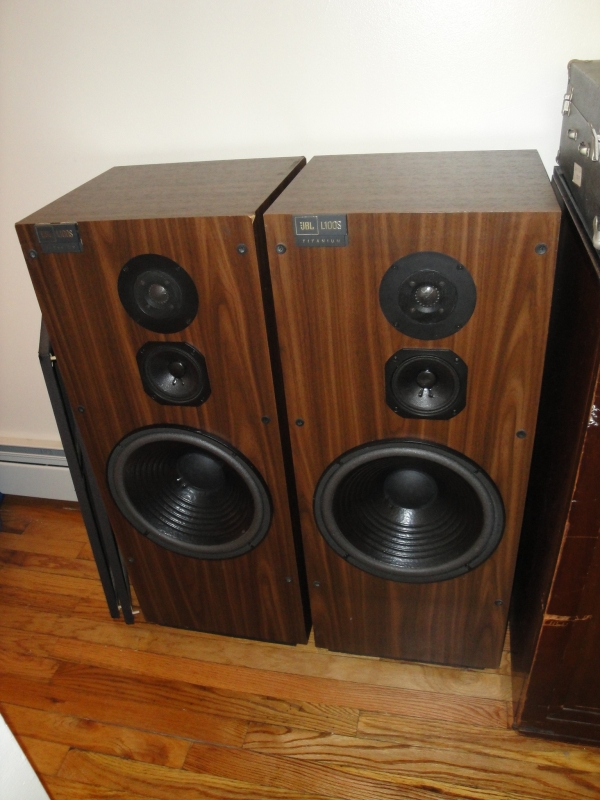

L100T: 035Ti tweeter- (no replacement tweeter and no diaphragm for repair), the 104H-2 midrange and the C8R104H-2 recone kit, and the 2214H woofer –C8R2214 recone kit or RFK12 JBL2214 refoam kit
L100T3: 035TIA tweeter which can be repaired with the D8R035TIA diaphragm, the 104H-2 midrange and the C8R104H-2 recone kit, and the 2214H woofer –C8R2214 recone kit or RFK12 JBL2214 refoam kit
hi there, how do I ship my speaker, can I ship it us mail
You can ship to us anyway you prefer. You can use USPS, UPS or Fedex. If you print and fill out this repair form and include it with your speaker, it will give you our address, packaging suggestions and all the info we need. http://localhost:8888/spex-sept-update/speaker-repair/repair-form-fill-out-and-send-with-speaker-2/
Pls advise where can i purchase (not ebay), a pair of Quadrex Sculptured Air Grills -Russet Brown
for JBL Century L 100.
Many thanks in advance.
Avner
We sell these. They are a special order. Contact us at info@speakerex.com to order them.
Hi,there,How do i Refoam may :JBL L65-12″ Woofer?Purchase in 1974 Ser,no:52055-52252,Refoam Kit?…..Many Thanks in Advance,…Aksel.
You need to use the RFK128 JBL kit and select DCP3200. If you are asking how to do it, here are the instructions
I have a set of L100t’s and the foam around the woofers has disintegrated. Is there a more durable replacement for the foam? Thank You.
It is very typical for the foam surround to dry rot. This dry rot also occurs on butyl rubber surround speakers. Depending on where you are in the world and the environmental exposure your speakers experience, you can expect this to happen every 5-20 years. You can change the cone to an accordion edge surround or an all paper surround but you will sacrifice low frequency response. The speaker cabinets were tuned for this type of speaker and surround so I say just repair them as needed. You can send them to us for us to refoam or recone or we sell do-it-yourself parts as well. Contact us at info@speakerex.com for more info.

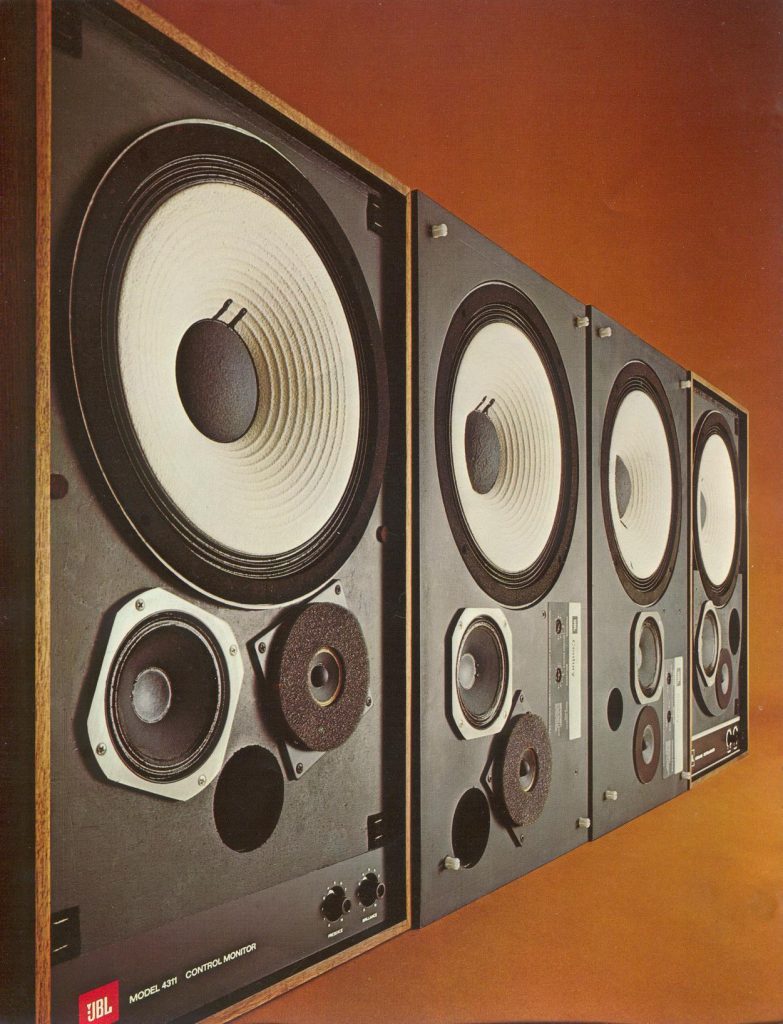

The L100 is related to the 4310 and 4311 series but has no connection to the 4400 series. It had all different drivers, and was discontinuued long before the 4400 series was released. The L100T and L100T3 are the the home version of the 4400 series.
